SY500C-10HD

  • SANY SY500C-10HD is a highly productive and reliable mining excavator specially designed for delivering a higher rate of investment to customers, It is a reliable partner for heavy-load excavating in mining and large infrastructure construction, such as airport and water conservancy.

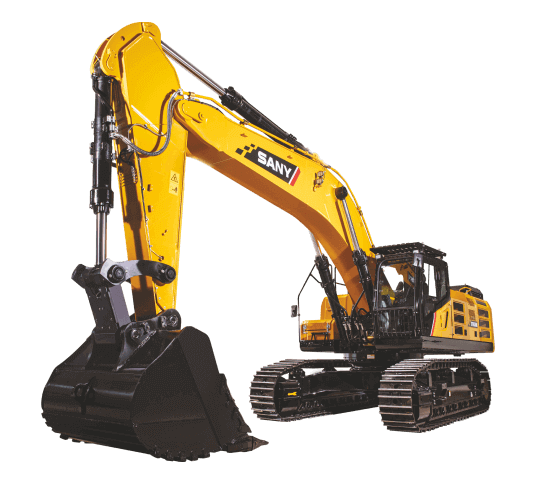

Sany SY500C-10HD Large Mining Excavators

Operating Weight:

49.5 T

Engine Make:

Isuzu

Rated Engine Power:

403 hp @ 1800 rpm

Boom:

6.50 m

Arm:

2.50 m

Bucket ( in m³):

3.1GP/2.5HD/5.0 Coal

Max. Digging Reach:

10.85 m

Max. Digging Depth:

6.60 m

About SY500C-10HD

High Efficiency, Higher ROI

SANY SY500C-10HD is a highly productive and reliable mining excavator specially designed for delivering a higher rate of investment to customers, It is a reliable partner for heavy-load excavating in mining and large infrastructure construction, such as airport and water conservancy. Customized engine, fast digging speed, low energy loss and auto deceleration system make our large excavators efficient and economical. The remote monitoring system checks the excavator’s dynamic performance in real-time and diagnoses its fault remotely.

features-new

FEATURES

Specially Designed for Mining

Specially Designed for Mining

  • Ensure the reliability of key structures under heavy load conditions.
  • Main structures are all used finite element analysis, IIW International standard/AISC Japanese standard is adopted.
  • Adopting a comprehensive test and verification system for the whole machine and every part, the reliability of the machine much higher.

Excellent Performance

Excellent Performance

  • Sany SY500C-10HD comes with a powerful Isuzu 6WG1X engine that provides high power & torque to meet heavy-duty applications requirements while offering excellent fuel efficiency.

High on Reliability

High on Reliability

  • Heavy duty boom and arm are made of large box-type structure welded with high-strength steel.
  • Internal baffle plates are integrally welded for higher durability.
  • Side skirts on the upper frame protect the structure from external impact.
  • HD undercarriage is made of high-strength alloy steel with good wear resistance and longer life.
  • Oil bath pre-cleaner offers as standard to prevent dirt from entering and damaging the Engine. This provides higher engine life with less operating cost.

Best-in-class Operator Comfort

Best-in-class Operator Comfort

  • Comfortable operator is a profit maker, by keeping in this mind, Sany offers an excellent operator environment with SY500C-10HD.
  •  It features a spacious cabin with a fully adjustable suspension seat, Smooth and ergonomic joysticks, an informative cluster, more AC ducts with auto climate control AC and many more.

High on Safety

High on Safety

  • Safe operating environment also results in higher productivity.
  • Sany SY500C-10HD comes with advanced safety features like front and top cabin guards, ROPS, FOPS-certified cab, upper structure side skirts etc.
