Piling Machinery

Piling Machinery

SR65

SR65

SR65

  • Max. Drilling Diameter: 1.1 m
  • Max. Drilling Depth: 20/27 m
  • Rated Output Torque: 70 kN-m
  • Stroke: 3000 mm
SR125 C10

SR125 C10

SR125 C10

  • Max. Drilling Diameter: 1.3 m
  • Max. Drilling Depth: 36/45 m
  • Rated Output Torque: 130 kN-m
  • Stroke: 3700 mm
SR155 C10

SR155 C10

SR155 C10

  • Max. Drilling Diameter: 1.5 m
  • Max. Drilling Depth: 56/44 m
  • Rated Output Torque: 155 kN-m
  • Stroke: 4200 mm
SR185 C10

SR185 C10

SR185 C10

  • Max. Drilling Diameter: 1.8 m
  • Max. Drilling Depth: 59/47 m
  • Rated Output Torque: 190 kN-m
  • Stroke: 4200 mm
SR215 C10

SR215 C10

SR215 C10

  • Max. Drilling Diameter: 1.8 m
  • Max. Drilling Depth: 64/51 m
  • Rated Output Torque: 220 kN-m
  • Stroke: 4200 mm

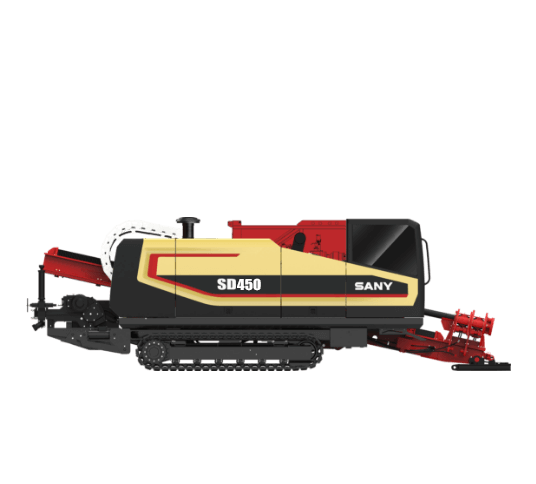

SD450

SD450

SD450

  • Max. Thrust & Pullback Force: 400 kN
  • Max. Torque: 14500 N m
  • Max. Pullback Diameter: 0.9 m
  • Max. Construction Distance: 450 m
SR235 C10

SR235 C10

SR235 C10

  • Max. Drilling Diameter: 2.0 m
  • Max. Drilling Depth: 68/54 m
  • Rated Output Torque: 235 kN-m
  • Stroke: 5000 mm
Sany SR235DW Diaphragm Wall Grab

SR235DW

SR235DW

  • Grab Width: 0.5 - 1.2 m
  • Max. Panel Depth: 35 m
  • Max. Closing Force: 128 T
  • Grab Swing: 180°
Sany SH500 Diaphragm Wall Grab

SH500

SH500

  • Grab Width: 0.5 - 1.2 m
  • Max. Panel Depth: 80 m
  • Max. Closing Force: 165 T
  • Grab Swing: 180°
Sany SDC120 Diaphragm Wall Grab

SDC120

SDC120

  • Max. Panel Depth: 120 m
  • Gearbox Torque: 2 x 100 kN-m
  • Max. Closing Force: 2 x 390 kN
  • Mud Pump Capacity: 450 m3/h
SR285R C10

SR285R C10

SR285R C10

  • Max. Drilling Diameter: 2.3 m
  • Max. Drilling Depth: 94/61 m
  • Rated Output Torque: 285 kN-m
  • Stroke: 6000 mm
SD390

SD390

SD390

  • Max. Thrust & Pullback Force: 400 kN
  • Max. Torque: 14500 N m
  • Max. Pullback Diameter: 0.9 m
  • Max. Construction Distance: 450 m
